Introduction

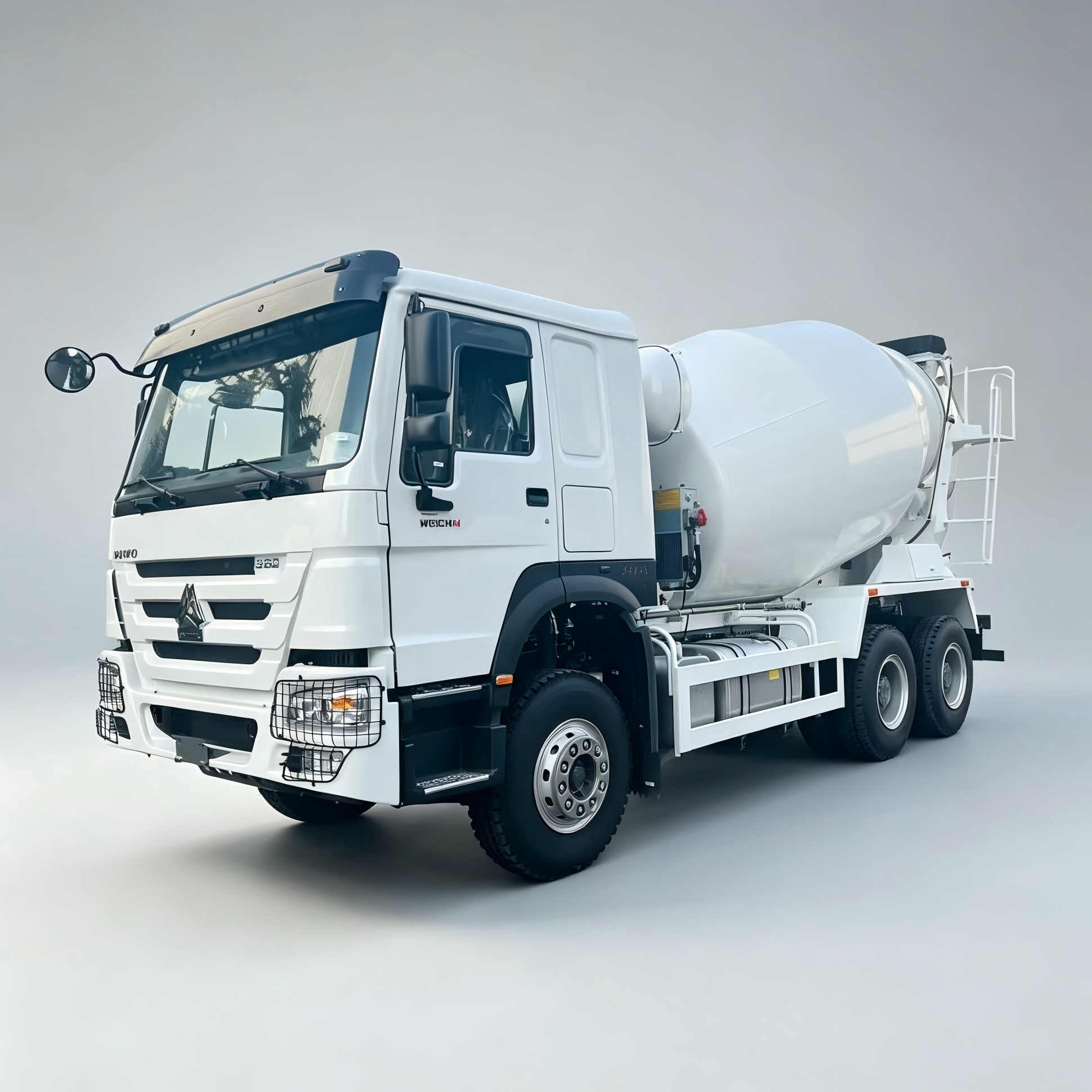

The Sinotruk Howo 6×4 380hp 10cbm Mixer Truck enables the vehicle to deliver excellent mobility and flexibility while transporting concrete. It ensures reliable, convenient and quick connection between the chassis and mixing drum, allows traction force to be transmitted smoothly to the mixing unit, and provides a certain buffering effect against impact loads.
The Sinotruk Howo 6×4 380hp 10cbm Mixer Truck can prevent drive wheel slippage when driving on wet and snowy roads, enabling the vehicle to start and accelerate steadily. It also maintains stable acceleration on wet pavement and avoids lateral sliding or tail swing. Adopting a practical cab design, the Sinotruk Howo 6×4 380hp 10cbm Mixer Truck features practical and comfortable interior space.
| Condition | Sinotruk factory original new truck. |
|---|---|
| Cabin | HW76 cab, with one sleeper and two seats, with Air Conditioner, 2-arm windscreen wiper system with three speeds, damped adjustable driver’s seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber. |
| Engine | Diesel 4-stroke direct injection diesel engine Engine model:WP10.380E22，380HP 6-cylinder in-line with water cooling, turbo-charging and intercooling |
| Transmission | HW19710, 10F & 2R Ratio: 14.28, 10.62, 7.87, 5.88, 4.38, 3.27, 2.43, 1.80, 1.34, 1.00, 13.91(R1), 3.18(R2) |
| Steering | ZF power steering, model ZF8118, hydraulic steering with power assistance |
| Front Axle | VGD95, 1×9500 KGS Steering with double T-cross section beam |
| Rear Axle | MCX16ZG, 2×16000 KGS Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles. |
| Chassis | Frame: U-profile parallel ladder frame with section of 300x80x8mm, and reinforced subframe all cold riveted cross members Front suspension:9semi-elliptic leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer Rear suspension:12 leaf semi-elliptic springs, bogie spring and stabilizer |
| Brake | Service brake: dual circuit compressed air brake Parking brake (emergency brake): spring energy, compressed air operating on front shaft and rear wheels Auxiliary brake: engine exhaust brake |
| Electrics | Operating voltage: 24 V, negative grounded Starter: 24 V, 5.4 Kw Alternator: 3-phase, 28 V, 1500 W Batteries: 2 x 12 V, 165 Ah Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light |
| Tire | 12.00R20, Radial (steel wire) Tires . 10+1 Pcs optional 315/80R22.5 /13R22.5/1200R24 |
| Mixer Body | Tank Body: it can as your requirements |
| Fuel Tank | 400L |
| Overall Dimension | 9000*2550*3950 mm |
Field application
Sinotruk Howo 6×4 380hp 10cbm Mixer Truck
Sinotruk Howo 6×4 380hp 10cbm Mixer Truck
Equipped with multi-directional adjustable air bag seats, the Sinotruk Howo 6×4 380hp 10cbm Mixer Truck can provide a comfortable driving experience for the driver. Electric rearview mirror, rearview mirror heating and other functions facilitate the driver to observe the rear situation in different weather.
