Introduction
3 axle 60000 Liters Monoblock Tanker Trailer with different compartment can transport different kinds of liquid at the same time. This reduces the transportation cost and saves fuel because the trips are reduced to one.
| Condition | 3 axle 60000 Liters Monoblock Tanker Trailer |
|---|---|
| Specification of Monoblock Tanker Trailer | |
| Dimension | 13920mm * 2550mm *3750mm |
| Tare Weight (semi trailer) | About 8000-12800kg |
| Total volume(L) | 60000 Liters |
| Tank Body Material | Q235 carbon steel |
| End plate | Q235 carbon steel |
| Manhole Cover | Carton steel |
| Bottom Valve | Aluminum API Pneumatic Bottom Valve |
| Discharging Valve | Diameter is 3 or 4 inch |
| Compartments | Four Compartment |
| Discharging Pipe | 4 inch rubber hose,2pcs,6m/each |
| Cat Walk | With (common model or special design) |
| Main beams | Welded design or special design I beam, connected by bolts and nuts Q345 carbon steel material |
| Axle | 3 axles,13T,FUWA |
| Landing Gear | JOST(D200T) or China brand 28T |
| Kingpin | JOST 2.0 or 3.5 inch bolt-in king pin |
| Suspension | Mechanical suspension |
| Leaf Spring | 90(w)mmx13(thickness)x10layers or 10mm x12mmx12 layers |
| Pneumatic Braking System | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand); 45L air tank |
| Rim | 9.00-22.5Chinese brand |
| Tire | 12.00R22.5. 12 Pcs optional 315/80R22.5 /13R22.5/1200R24 |
| ABS | Optional |
| Painting | Sandblasted, anti-rust chassis surface is available with 1 layer of anticorrosive primer and 2 layer of top coats. |
| Accessories | One standard tool box |
| Shipping Terms | By bulk cargo, RORO or 40HQ containers |
Field application

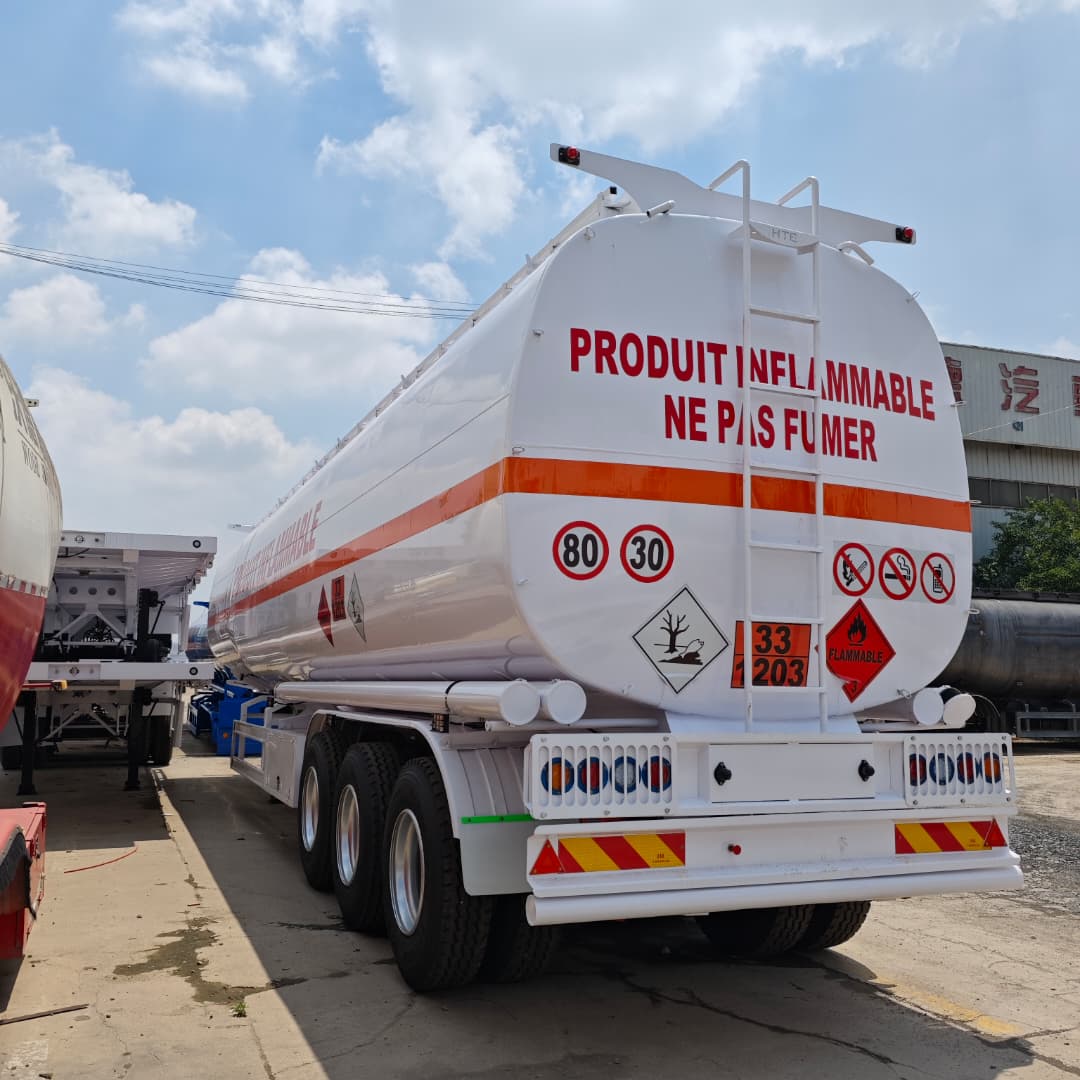

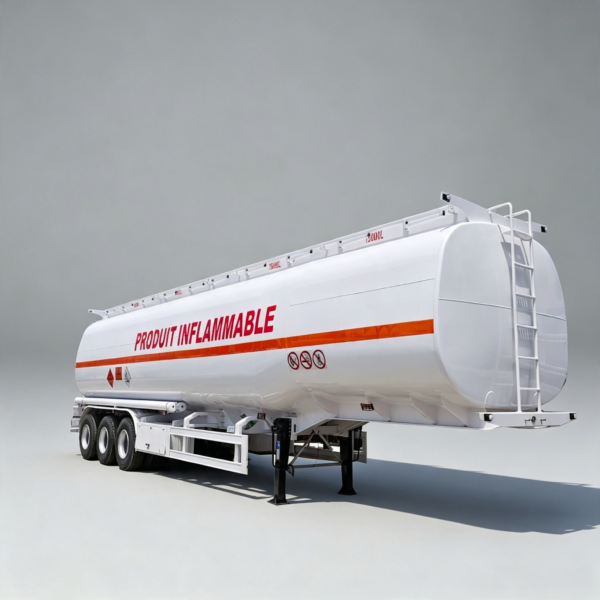

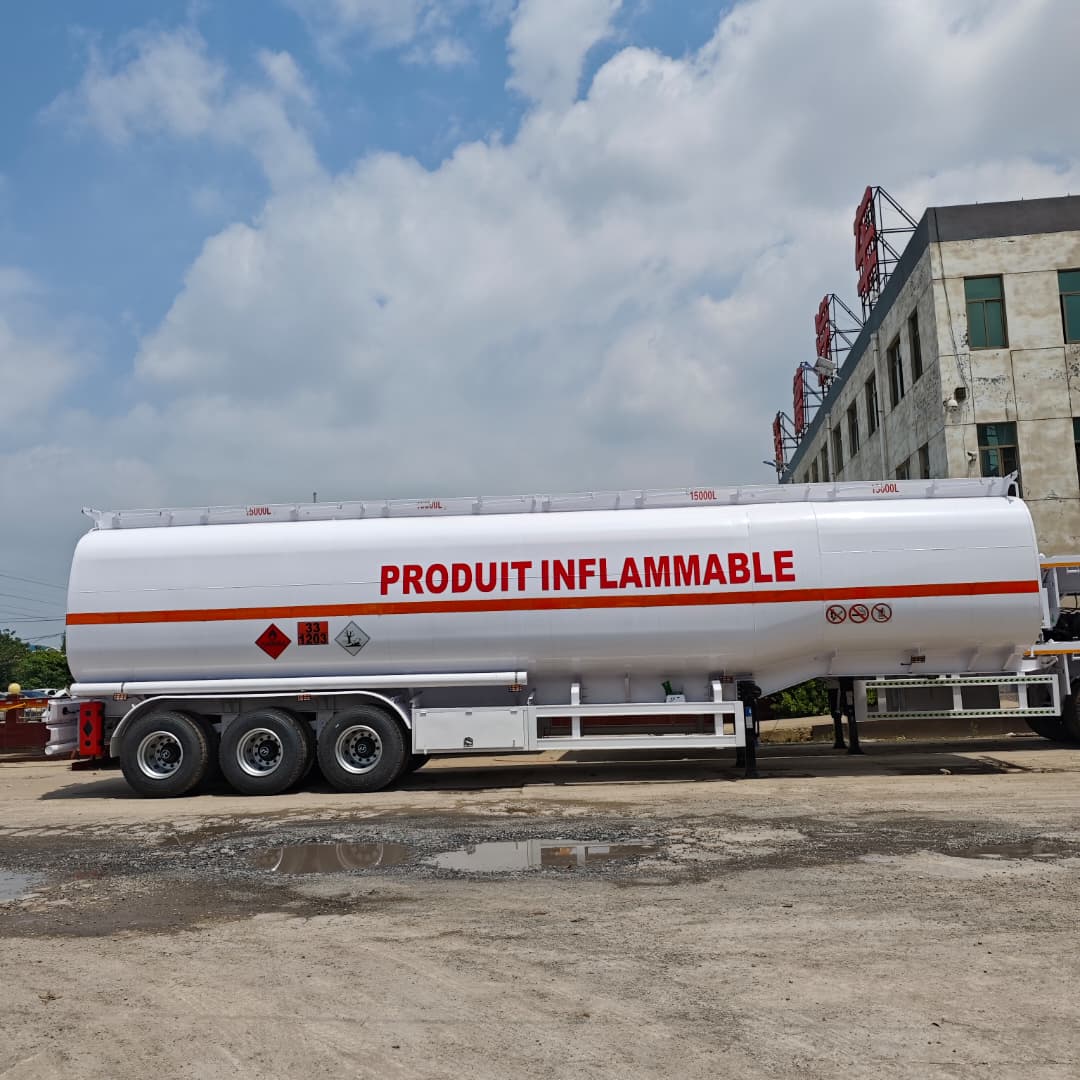

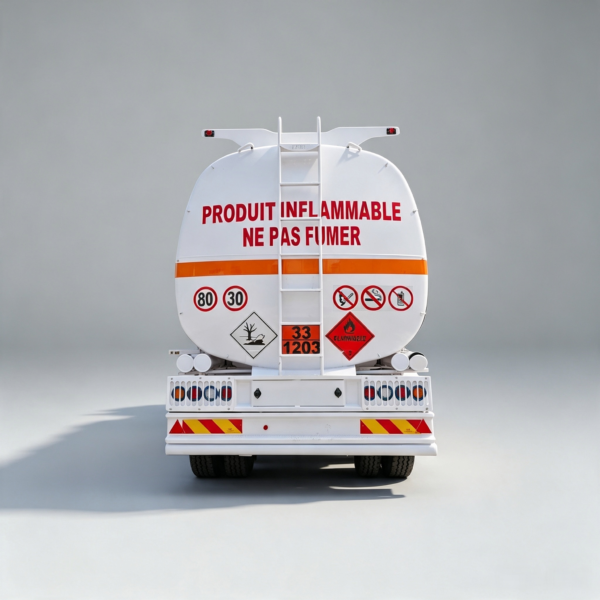

3 Axle 60000 Liters Monoblock Tanker Trailer
“3 axle 60000 Liters Monoblock Tanker Trailer for sale are divided into two types: transport oil tankers and add fuel tankers according to different functions. It is widely used in the transportation of petroleum, gasoline and its derivatives.
3 axle 60000 Liters Monoblock Tanker Trailer are just a collective term for all these types of fuel tankers for sale, and they are called differently in different places, depending on the configuration of the medium being transported. “
